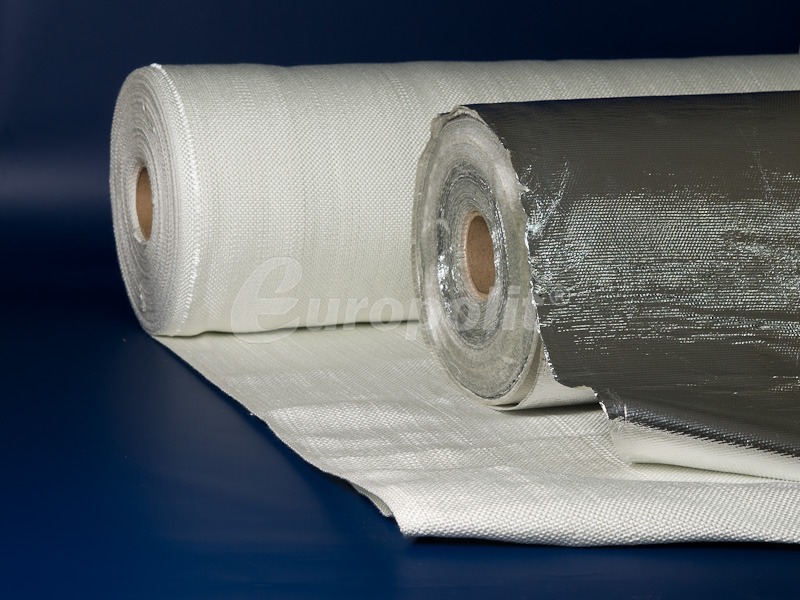

Glass metallized fabric type TSM
Glass metalized fabric is woven with a cloth strand of glass textured yarn (type E) and then laminated on one side with aluminum film.
Application
Thermal insulation fabrics are applied as thermal insulations for all types of machines, devices and systems, with contact with high temperatures and where we want reduce the heat flow. Particularly often they are used as thermal screens, insulations in the process of heating welded structures or covers of hoses or cables working near heat sources. Glass metalized fabric is also used as the material for sewing protective clothing, for instance, for steel industry or firefighting.
|
DESCRIPTION OF PARAMETER |
VALUE |
|
TYPE |
TSM |
|
Material |
glass yarn + aluminum foil |
|
Maximum temporary temperature in °C |
650* |
|
Maximum continuous operation temperature in °C |
500* |
|
Minimum use temperature in °C |
- 100 |
|
Type of reinforcement |
- |
|
Maximum losses after roasting as % |
3 |
|
Maximum shrinkage as % |
3 |
|
Weight in g/m² |
1000 ± 15 % |
|
Colour |
white / metallic |
|
Dimensional range in mm |
width: 1000 |
|
*acrylic glue undergoes degradation in the temperature of + 150 °C, white may result in fabric delaminating |
|
25 or 50 rm roll
