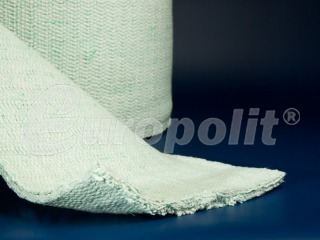

Reinforced BIO-TEX tapes type TCZ-BIO, TCZ-BIO/P

The tape of TCZ-BIO type is yarn of high quality biosoluble refractory fibres reinforced with an inconel wire. As opposed to ceramic fibres, this material is not subject to any hygienic restrictions in EU Member States in accordance with Q note of Directive 97/69 EC. Depending on thickness, a single- or multi-layer strand is used. Optionally, tapes can be equipped with a self-adhesive layer (types with the letter "P"). The product contains approximately 18% of organic fibres that, in the first period of operation, may burn-out without losses for key operation parameters.

Insulation tapes are applied as thermal insulations for all types of machines, devices systems with contact with high temperatures and where we want to reduce the heat flow. Particularly often they are used as thermal screens, insulations in the process of heating welded structures or covers of hoses or cables working near heat sources.

Legal note: This product cannot be delivered and is not available on Italian market because of the exclusive rights of other company for BIO-TEX trademark.

DESCRIPTION OF PARAMETER

VALUE

TYPE

TCZ-BIO, TCZ-BIO/P

Material

BIO-TEX reinforced yarn

Maximum temporary temperature in °C

1100

Maximum continuous operation temperature in °C

1000

Type of reinforcement

wire CrNi ø 0,1 mm

Strand

cloth, single-layer or multi-layer

Maximum losses after roasting as %

18

Maximum shrinkage as %

3

Density in g/cm3

0,5 ± 15 %

Colour

white

Dimensional range in mm

width: 8 – 500
thickness: 2 – 10

TCZ-BIO/P – self-adhesive

roll at least 50 rm
