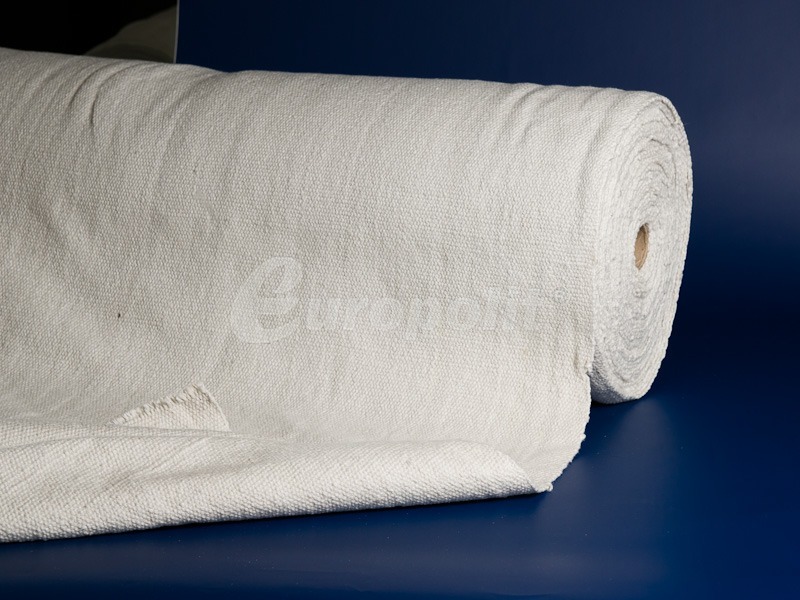

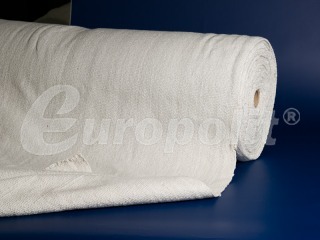

Ceramic fabric type TCW

Ceramic fabric, type TCW is woven of high quality ceramic yarn without reinforcement. The product contains approximately 18% of organic fibres which, in the first period operation, may burn-out without losses for key operation parameters.

Ceramic fabrics are applied as thermal insulations for all types of machines, devices systems with contact with high temperatures and where we want to reduce the heat flow. They are particularly often used as thermal screens, insulations in the process of heating welded structures or covers of hoses or cables working near the heat sources.

DESCRIPTION OF PARAMETER

VALUE

TYPE

TCW

Material

ceramic yarn

Maximum temporary temperature in °C

800

Maximum temporary temperature of continuous operation in °C

650

Type of reinforcement

-

Strand

cloth, single-layer

Maximum losses after roasting as %

18

Maximum shrinkage as %

3

Density in g/cm3

0,5 ± 15 %

Colour

white

Dimensional range in mm

width: 1000
thickness: 2, 3, 4, 5

30 rm roll



europolit
