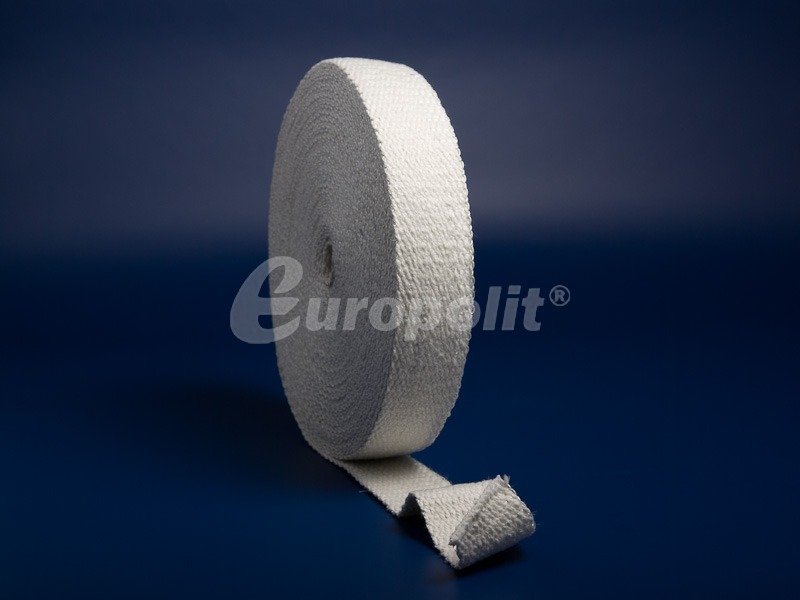

Ceramic tapes type TCW, TCW/P

Ceramic tape of TCW type is woven of high quality ceramic yarn without reinforcement. Depending on thickness, single- or multi-layer strand is used. Optionally, tapes can be equipped with a self-adhesive layer (types with the letter "P"). The product contains approximately 18% of organic fibres which, in the first period of operation, may burn-out without losses for key operation parameters.

Insulation tapes are applied as thermal insulations for all types of machines, devices systems with contact with high temperatures and where we want to reduce the heat flow. Particularly often they are used as thermal screens, insulations in the process of heating welded structures or sleeves of hoses or cables working near heat sources.

DESCRIPTION OF PARAMETER

VALUE

TYPE

TCW, TCW/P

Material

ceramic yarn

Maximum temporary temperature in °C

800

Maximum continuous operation temperature in °C

650

Type of reinforcement

-

Strand

cloth, single-layer or multi-layer

Maximum losses after roasting as %

18

Maximum shrinkage as %

3

Density in g/cm3

0,5 ± 15 %

Colour

white

Dimensional range in mm

width: 8 – 500
thickness: 2 – 10

TCW/P – self-adhesive
TCW+P – PTFE impregnated

roll at least 50 rm



europolit
