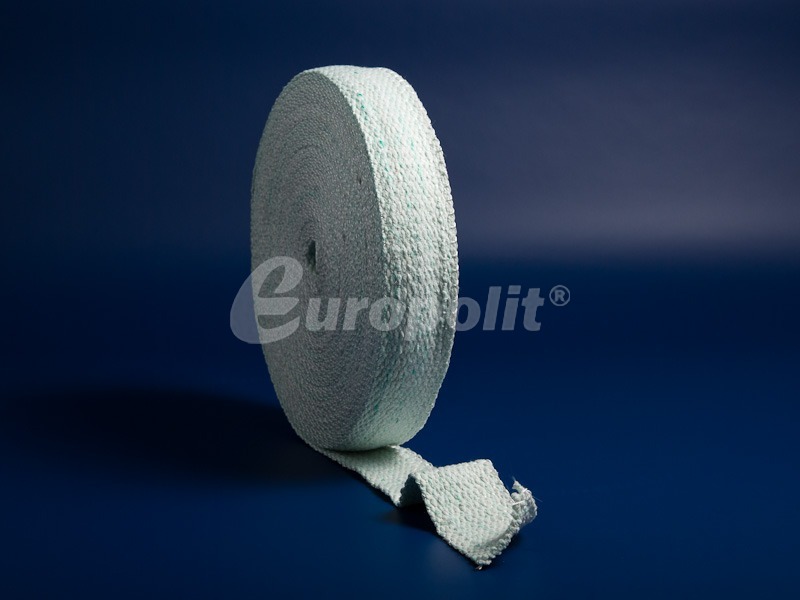

BIO-TEX tape type TCW-BIO

The tape of TCW-BIO type is woven of high quality biosoluble refractory fibres. As opposed to ceramic fibres, this material is not subject to any hygienic restrictions in the EU Member States in accordance with the Q note of Directive 97/69 EC. The used fibres are characterized by perfect thermal stability and keep their original structure to the amount of the maximum temperature of use. Products of BIO-TEX type do not contain refractory ceramic fibres (RCF) and asbestos. The product contains approximately 18% of organic fibres which, in the first period operation, may burn-out without losses for key operation parameters.

BIO-TEX tapes are applied as thermal insulations for all types of machines, devices systems with contact with high temperatures and where we want to reduce the heat flow. They are particularly often used as thermal screens, insulations in the process of heating welded structures or covers of hoses or cables working near the heat sources.

Legal note: This product cannot be delivered and is not available on Italian market because of the exclusive rights of other company for BIO-TEX trademark.

DESCRIPTION OF PARAMETER

VALUE

TYPE

TCW-BIO, TCW-BIO/P

Material

BIO-TEX yarn

Maximum temporary temperature in °C

800

Maximum continuous operation temperature in °C

650

Type of reinforcement

-

Strand

cloth, single-layer or multi-layer

Maximum losses after roasting as %

18

Maximum shrinkage as %

3

Density in g/cm3

0,5 ± 15 %

Colour

white-green

Dimensional range in mm

width: 8 – 500
thickness: 2 – 10

TCW-BIO/P – self-adhesive

roll at least 50 rm
