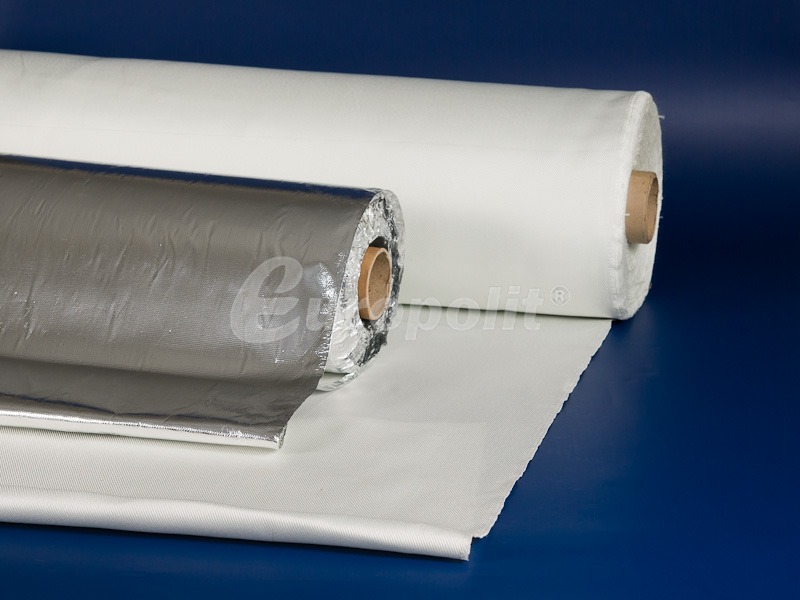

Glass metallized fabric type STM
Glass metalized fabric is twill woven of glass silk (glass fibre of type E), and then laminated on one side with polyester film with the thickness of 0.1 mm.
Application
Thermal insulation fabrics are applied as thermal insulations for all types of machines, devices and systems with contact with high temperatures and where we want to reduce the heat flow. Particularly often they are used as thermal screens, insulations in the process of heating welded structures or covers of hoses or cables working near heat sources. Glass metalized fabric, is used also as the material for sewing protective clothing, for instance, for steel industry and firefighting.
|
DESCRIPTION OF PARAMETER |
VALUE |
|
TYPE |
STM |
|
Material |
glass yarn + polyester film |
|
Maximum temporary temperature in °C |
500* |
|
Maximum continuous operation temperature in °C |
400* |
|
Minimum use temperature in °C |
- 100 |
|
Fiber melting point in °C |
1100 |
|
Type of reinforcement |
- |
|
Maximum losses after roasting as % |
1 |
|
Maximum shrinkage as % |
3 |
|
Weight in g/m² |
520 ± 15 % |
|
Colour |
white / metalic |
|
Dimensions in mm |
width: 1000 |
*acrylic glue undergoes degradation in the temperature of + 150°C, which may result in delamination of the fabric
25 or 50 rm roll
