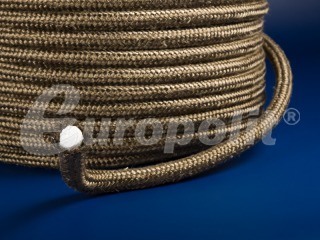

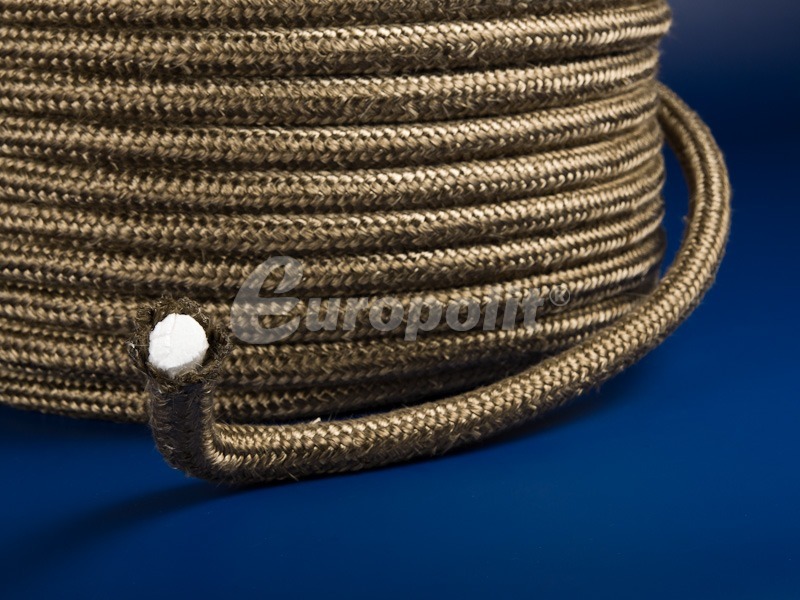

Overbraided basalt rope type ETS–O
Premium basalt yarn applied in this rope is characterized by excellent thermal and mechanical resistance. The rope of ETS-O type is built from core of ceramic mat overbraided with textured basalt yarn. Thanks to the application of a proper strand and texture, we obtained elastic packing with much air captured between the fibres. This phenomenon gives, as a result, perfect insulating power.
Application
Basalt packing is a resting sealing, ideal to be used in furnaces, flaps, hatches, holes cleanout openings and expansion gaps. Applied e.g. in power plants (coal mills), in metallurgy (coke batteries), founding (forms sealing), ceramic industry (ceramic carts and furnaces) and municipal economy (coal furnaces).
|
DESCRIPTION OF PARAMETER |
VALUE |
|
TYPE |
ETS-O |
|
Material |
basalt yarn + ceramic fibre |
|
Maximum temporary temperature in °C |
800 |
|
Maximum continuous operation temperature in °C |
700 |
|
Minimum operation temperature in °C |
- 100 |
|
Fiber melting point in °C |
1450 |
|
Type of reinforcement |
- |
|
Maximum shrinkage as % |
3 |
|
Content of organic fibres % |
- |
|
Maximum losses after roasting as % |
1 |
|
Density in g/cm3 |
0,70 ± 15 % |
|
Colour |
brown |
|
Dimensional range in mm |
18 – 90 |
18-90 mm – roll at least 10 kg, but not less than 10 mt
