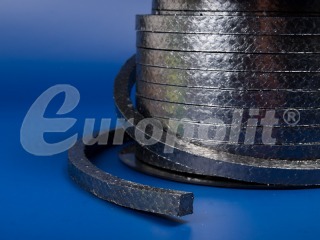

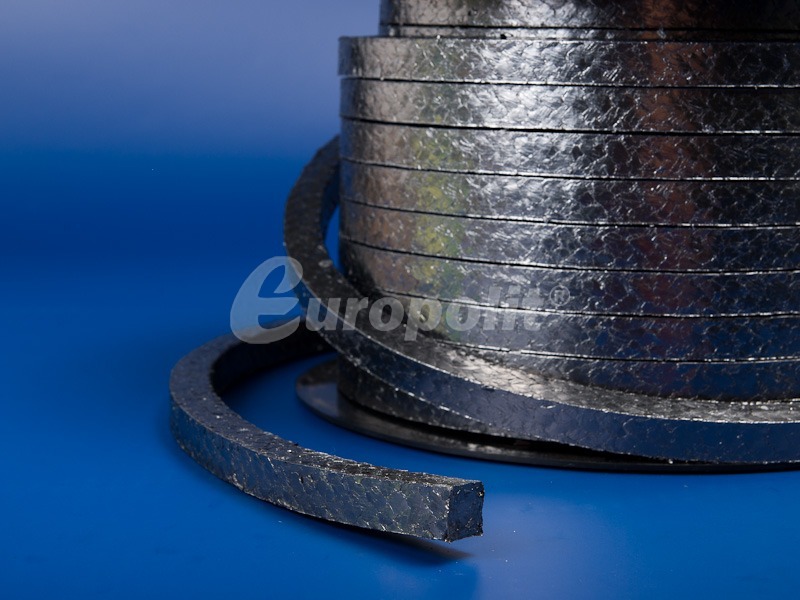

Reinforced graphite packing type EGZ and EGZ/I
Packing from yarn from exfoliated pure graphite reinforced with a thin inconel wire. Exfoliated graphite, due to its thermal and chemical resistance, self-spreadable properties and good thermal conductivity is perfect for high-temperature braided packing. Reinforcing the packing with a thin inconel wire improves the mechanical strength and increases the thermal resistance. The variation with the symbol EGZ/I is additionally enriched with a high quality corrosion inhibitor.
Application
Graphite packing is used in valves at very high temperatures and pressures in contact with steam, oils, acids, except for strong oxidizers.
|
DESCRIPTION OF PARAMETER |
VALUE |
|
TYPE |
EGZ i EGZ/I |
|
Maximum operation temperature in °C |
600 (in anaerobic conditions, up to 2500) |
|
Minimum use temperature in °C |
- 240 |
|
Scope of pH |
0 – 14 |
|
Type of reinforcement |
wire CrNi ø 0,1 mm |
|
Density in g/cm 3 |
1,2 ± 15 % |
|
Fittings |
p=320 bar v=2 m/s |
|
Colour |
black |
|
Dimensional range in mm |
4 – 50 |
6-16 mm – roll at least 2 kg
17-30 mm – roll at least 5 kg
