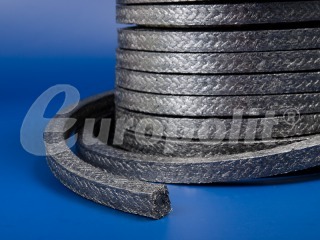

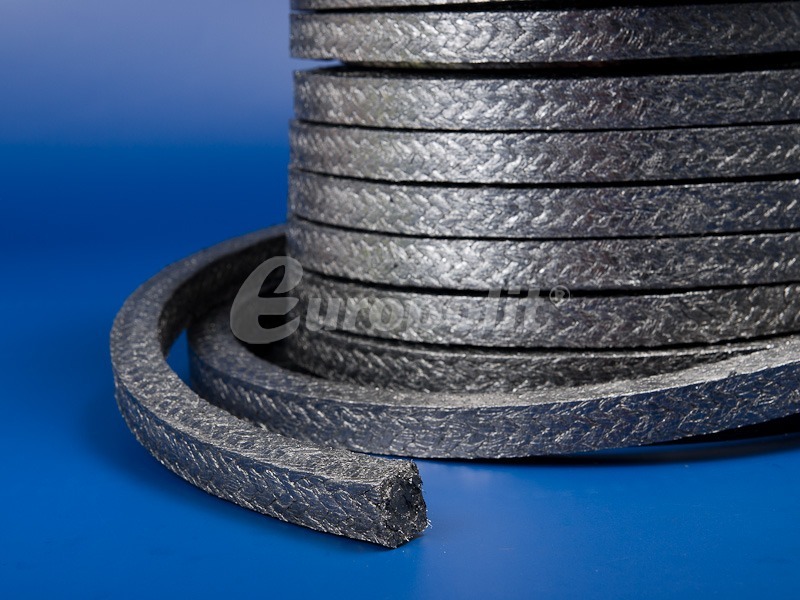

Graphite packing reinforced with INCONEL netting type EGZ/RR
High-parameter valve packing braided of yarn made of natural, expanded graphite strengthened with a braid of inconel netting with very high thermal, chemical and mechanical resistance. Additionally, sealing is enriched with electro-galvanic corrosion inhibitor.
Application
EGZ/RR packing is used mostly in the power sector for sealing barrier fittings or as a closing package at very high temperatures and pressures up to 500 bar, in contact with steam, oils, acids except for strong oxidizers, as well as in:
- chemical industry – for fittings in chemically aggressive utilities,
- petrochemical industry – resistance to oils and hydrocarbons.
|
DESCRIPTION OF PARAMETER |
VALUE |
|
TYPE |
EGZ/RR |
|
Maximum operation temperature in °C |
600 (in steam up to 650) |
|
Minimum use temperature in °C |
- 240 |
|
Scope of pH |
0 – 14 |
|
Type of reinforcement |
braid of CrNi netting on each thread |
|
Density in g/cm3 |
1,3 ± 15 % |
|
Compressibility in % |
≥ 15 |
|
Fittings |
p=500 bar v=1 m/s |
|
Dimensional range in mm |
6 – 25 |
6-16 mm – roll at least 2 kg
17-30 mm – roll at least 5 kg
