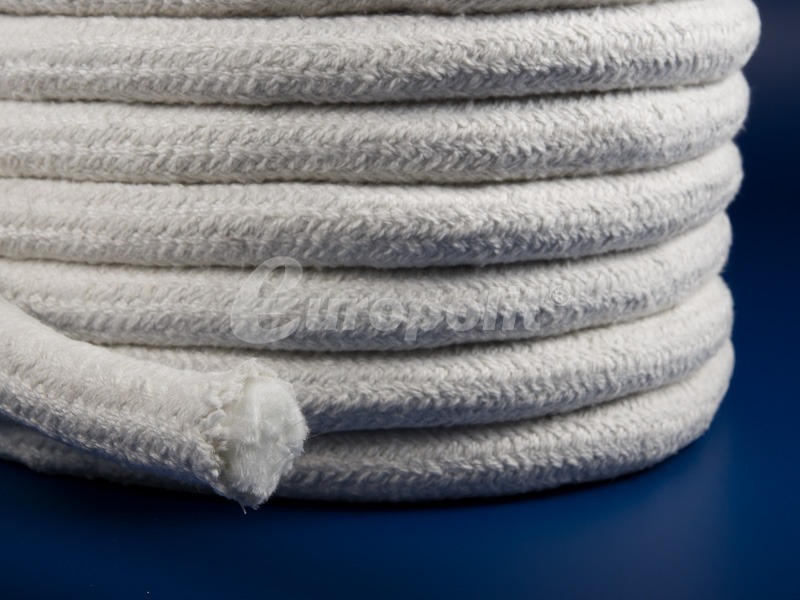

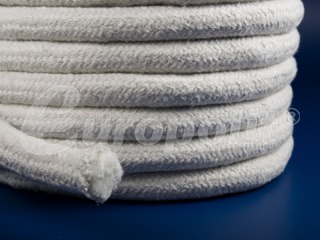

Reinforced ceramic packing with glass filling type ECS
This packing consists of a core of yarn or glass mat very densely overbraided with ceramic yarn reinforced with inconel.
Application
Ceramic packing with glass filling is intended for sealing various kinds of dryers, industrial furnaces, coal mills as well as for thermal insulation of hot elements. High chemical resistance of aluminosilicate and glass fibres enables application of this packing in chemical equipment and in exhaust systems of hot flue gases and post-reaction gases.
|
DESCRIPTION OF PARAMETER |
VALUE |
|
TYPE |
ECS |
|
Material |
ceramic yarn + glass yarn |
|
Maximum temporary temperature in °C |
800 |
|
Maximum continuous operation temperature in °C |
600 |
|
Minimum operation temperature in °C |
- 100 |
|
Type of reinforcement |
wire NiCr ø 0,1 mm |
|
Maximum losses after roasting as % |
10 |
|
Density in g/cm3 |
0,7 ± 15 % |
|
Colour |
white |
|
Dimensional range in mm |
10 – 90 |
6-16 mm – roll at least 5 kg
17-90 mm – roll at least 10 kg, but not less than 10 mt
