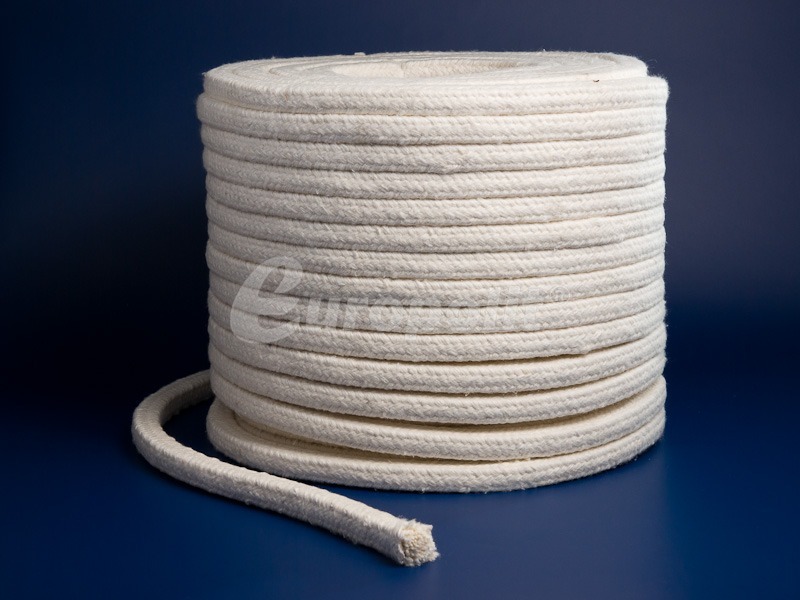

Dry cotton packing type EBS
This packing is produced from natural cotton yarn. Thanks to a special strand, it retains softness and flexibility and fills the sealed space very well. The considerable quantity of air trapped between the fibers provides an excellent thermal insulation at a very reasonable price. High resistance to extremely low temperatures should also be noted.
Application
Designed for sealing chambers and dryers at the maximum temperature 120°C. As a result of using natural cotton high-quality fibers, it may be used in contact with food. It is used in the food and the pharmaceutical industries.
|
DESCRIPTION OF PARAMETER |
VALUE |
|
TYPE |
EBS |
|
Material |
natural cotton yarn on a glass guide |
|
Maximum temporary temperature in °C |
150 |
|
Maximum continuous operation temperature in °C |
120 |
|
Type of reinforcement |
- |
|
Maximum losses after roasting as % |
3 |
|
Maximum shrinkage as % |
3 |
|
Density in g/cm3 |
0,5 ± 15 % |
|
Colour |
white / yellow |
|
Dimensional range in mm |
6 – 90 |
|
|
|
EBS/G – graphited
6-16 mm – roll at least 5 kg
17-90 mm – roll at least 10 kg, but not less than 10 mt
